CeraTex^® Ceramic Fiber Tape

CeraTex^® Ceramic Fiber Tape is a narrow woven fabric manufactured from high temperature alumino-silicate based ceramic fiber reinforceded with high temperature fiberglass. The product is white and odorless, suitable for high temperature applications up to 2300°F.

Characteristics and Specs

Lightweight,  low thermal conductivity, high temperature stability, excellent handling strength, low heat storage, thermal shock resistant, fire and flame proof, chemical resistant, compatable with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalis).

Chemical Composition:           Al2O3 47%; SiO2 50%; total Al2O3+SiO2 >97%; Fe2O3:  < 1.0%
Fiber Physical Properties:        Fiber Diameter: 3 – 4.5 microns
Fiber Shrinkage (1800°F, 3h): < 3.5%
Working Temperature :           1,800 °F. for Continuous Use, 2300 °F Maximum
Specific Heat (@2000°F):      0.27 Btu/lb °F
pH Range: 2-12

Typical Applications

• Safety and protective insulation cover, curtains;
• Insulation wrapping material for cable, wire, pipe, exhaust, etc;
• Gaskets, tadpole gasket and other high temperature insulation seal.

Product Styles

3120G Ceramic Fiber Tape, Standard Fiberglass Reinforced

3120W Ceramic Fiber Tape with Wire Insert

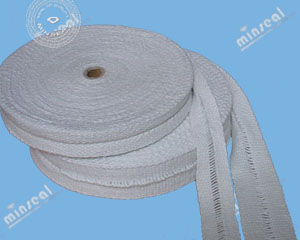

3120D Ceramic Fiber Drop Warp Tape (Bolt Hole Tape, Ladder Tape)

Product Sizes and Variants

Thickness: 1/16" , 1/8"; Width: 1/2" to 6"; Roll Length: 100'

Also available: Heat treated, Adhesive(PSA) back

Heat Cleaning Process: The products contain certain amount of organic binder materials(necessary for fiber carding process). The organic binder will burn out at lower temperature and generate smokes. This will not affect the ceramic fiber properties. After the organic binder is burned out the product will turn white again. In applications where smoke is prohibited, the product should be heat cleaned or treated before it is put into use.
